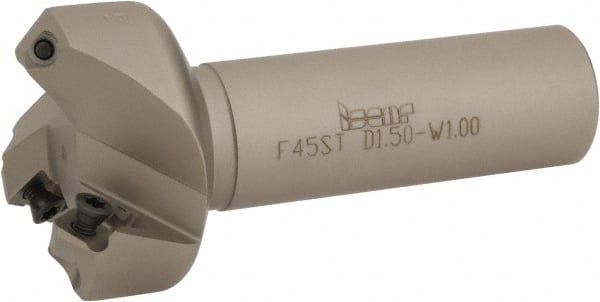

Iscar - 45° Lead Angle, 2" Max Cut Diam, 1-1/2" Min Cut Diam, 0.26" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SE.. 1204, SE.. 12T3.. Insert Style, 4" Overall Length, Straight Shank
Item #: 60842689
Brand: Iscar
Model #: 3100389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0100 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Style | SE.. 1204; SE.. 12T3.. |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | F45ST |
| Head Length (Decimal Inch) | 1.2900 |
| Weldon Flat | Yes |
