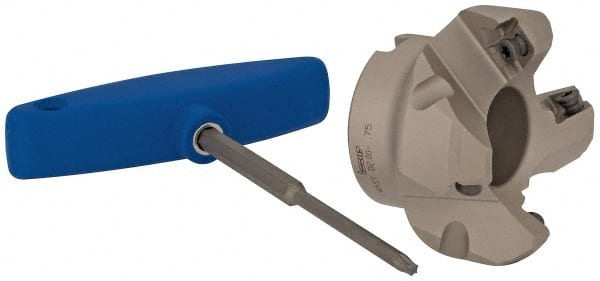

$Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.26" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, SE.. 1204...\xB6SE.. 12T3.. Insert, Right Hand Cut, 4 Flutes, Series F45ST - Exact Tooling$

Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.26" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, SE.. 1204...\xB6SE.. 12T3.. Insert, Right Hand Cut, 4 Flutes, Series F45ST

Item #: 60842705
Brand: Iscar
Model #: 3100366
Exact Tooling IR#: 04

Product Specifications

Cutting Diameter (Inch) 2

Cutting Diameter (Decimal Inch) 2.0000

Arbor Hole Diameter (Decimal Inch) 0.7500

Lead Angle 45

Overall Height (Inch) 1-3/4

Overall Height (Decimal Inch) 1.7500

Insert Compatibility SE.. 1204...; SE.. 12T3..

Series F45ST

Through Coolant No

Maximum Depth of Cut (Decimal Inch) 0.2600

Number of Cutter Inserts 4

Insert Holding Method Screw

Number of Flutes 4

Maximum Body Diameter (Decimal Inch) 2.4700

Cutting Direction Right Hand

Complete Insert Compatibility SEHW; SEKT; SEMT

Product Specifications
Cutting Diameter (Inch)	2
Cutting Diameter (Decimal Inch)	2.0000
Arbor Hole Diameter (Decimal Inch)	0.7500
Lead Angle	45
Overall Height (Inch)	1-3/4
Overall Height (Decimal Inch)	1.7500
Insert Compatibility	SE.. 1204...; SE.. 12T3..
Series	F45ST
Through Coolant	No
Maximum Depth of Cut (Decimal Inch)	0.2600
Number of Cutter Inserts	4
Insert Holding Method	Screw
Number of Flutes	4
Maximum Body Diameter (Decimal Inch)	2.4700
Cutting Direction	Right Hand
Complete Insert Compatibility	SEHW; SEKT; SEMT
