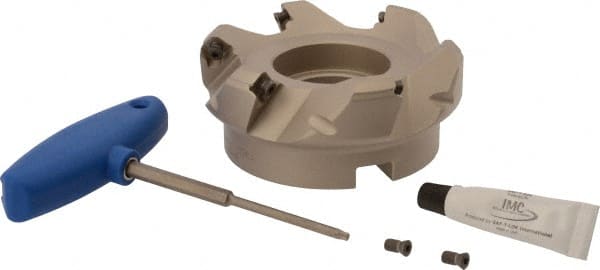

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.26" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SEK/MT 12... Insert, Right Hand Cut, 6 Flutes, Series F45ST
Item #: 60842762
Brand: Iscar
Model #: 3100369
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | SEK/MT 12... |
| Series | F45ST |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 4.4000 |
| Cutting Direction | Right Hand |
