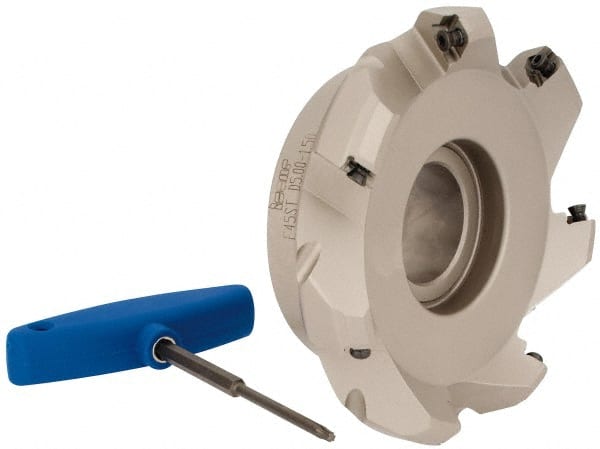

Iscar - 5" Cut Diam, 1-1/2" Arbor Hole, 0.26" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.. 1204...\xB6SE.. 12T3.. Insert, Right Hand Cut, 7 Flutes, Series F45ST
Item #: 60842788
Brand: Iscar
Model #: 3100390
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | SE.. 1204...; SE.. 12T3.. |
| Series | F45ST |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Maximum Body Diameter (Decimal Inch) | 5.4300 |
| Cutting Direction | Right Hand |
