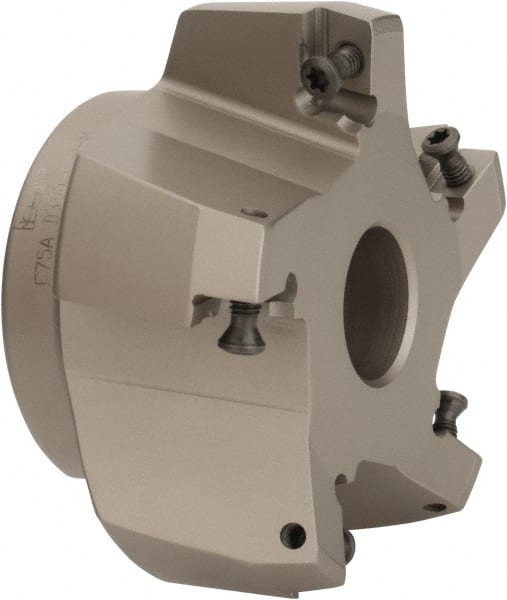

Iscar - 3" Cut Diam, 1" Arbor Hole, 0.27" Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 5 Inserts, AD.. 1505\xB6HM90 AD.. 1505 Insert, Right Hand Cut, 5 Flutes, Series F75A
Item #: 60843083
Brand: Iscar
Model #: 3100256
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 75 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | AD.. 1505; HM90 AD.. 1505 |
| Series | F75A |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Cutting Direction | Right Hand |
