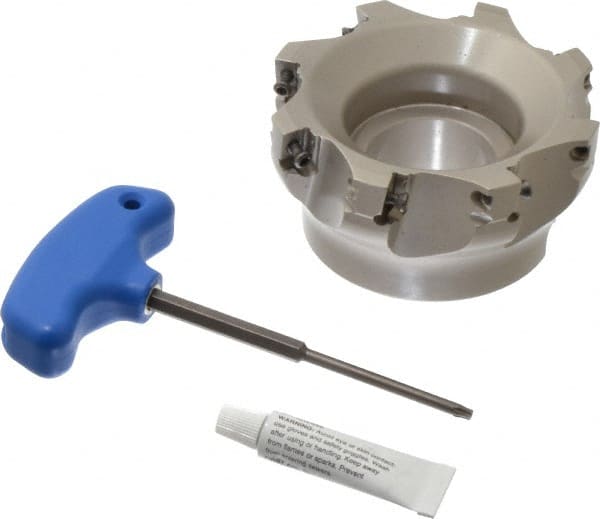

Iscar - 8 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.56" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, AD..1505.. & HM90 AD..1505.. Insert Compatibility, Series HM90
Item #: 60843547
Brand: Iscar
Model #: 3102121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | AD..1505..; HM90 AD..1505.. |
| Series | HM90 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90A-15 |
| Number of Flutes | 8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Depth (Decimal Inch) | 0.3750 |
| Counterbore Diameter (Decimal Inch) | 0.2030 |
