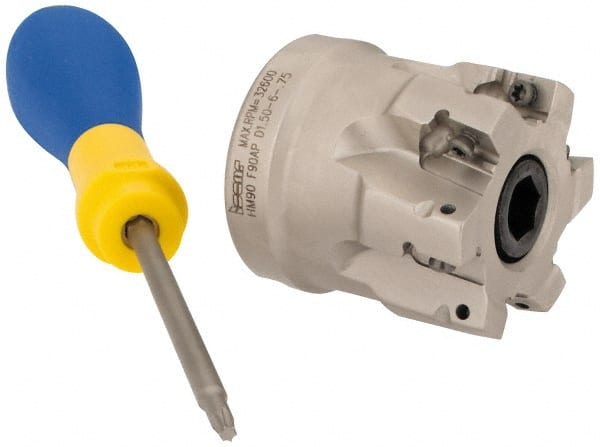

Iscar - 6 Inserts, 1-1/2" Cut Diam, 3/4" Arbor Diam, 0.39" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.57" High, AP..1003.. & HM90 AP..1003.. Insert Compatibility, Series HM90
Item #: 60843646
Brand: Iscar
Model #: 3102084
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
| Series | HM90 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90AP-10 |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.3125 |
| Keyway Depth (Decimal Inch) | 0.1875 |
| Complete Insert Compatibility | AP... 1003; HM90 APKT |
