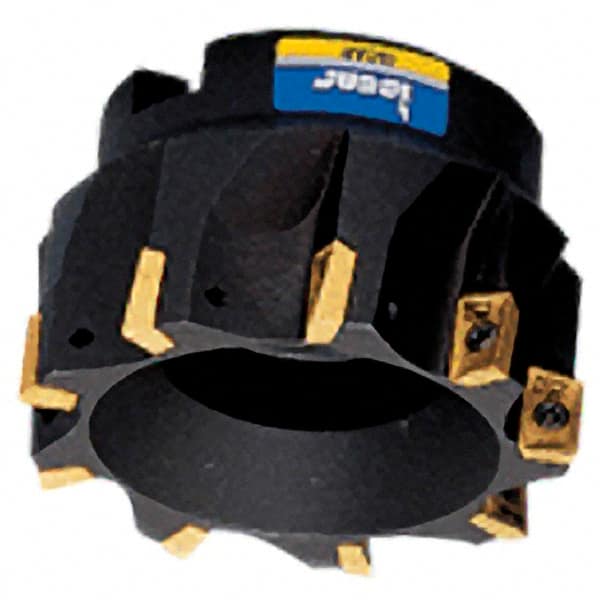

Iscar - 9 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.39" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, HM 90 APKT 1003... Insert Compatibility, Series HM90
Item #: 60843687
Brand: Iscar
Model #: 3102086
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HM 90 APKT 1003... |
| Series | HM90 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90AP-10 |
| Number of Flutes | 9 |
| Complete Insert Compatibility | AP... 1003; HM90 APKT |
