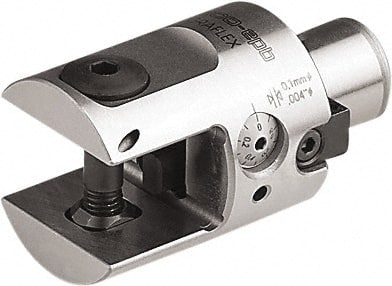

Seco - 70mm Body Diam, Manual Twin Cutter Boring Head - 85mm to 144mm Bore Diam
Item #: 60867512
Brand: Seco
Model #: 26693
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 70.00 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | Graflex 6 |
| Series | EPB |
| Minimum Bore Diameter (mm) | 85.00 |
| Maximum Bore Diameter (mm) | 144.00 |
| Projection (mm) | 105.00 |
