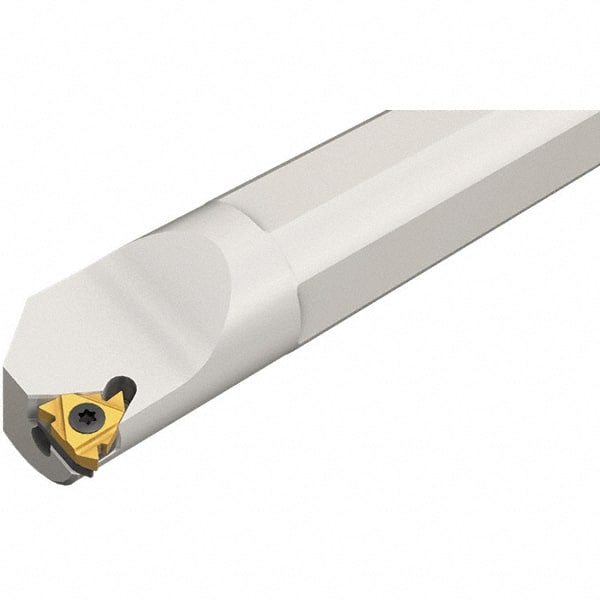

Iscar - Internal Thread, Right Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 125mm OAL, Various Insert Compatibility, SI Toolholder, Series IscarThread
Item #: 60873460
Brand: Iscar
Model #: 3800098
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Insert Compatibility | GTGA; GTMA; IR-BUT; IR-EL; IR-MJ; IR/L-60; IR/L-55; IR/L-ABUT; IR/L-ACME; IR/L-API; IR/L-API RD; IR/L-BSPT; IR/L-ISO; IR/L-NPT; IR/L-NPTF; IR/L-PG; IR/L-RND; IR/L-SAGE; IR/L-STACME; IR/L-TR; IR/L-UN; IR/L-UNJ; IR/L-W; WBGT; WBMT |
| Series | IscarThread |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Center to Cutting Edge (mm) | 6.50 |
| Center to Cutting Edge (Decimal Inch) | 0.2559 |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
