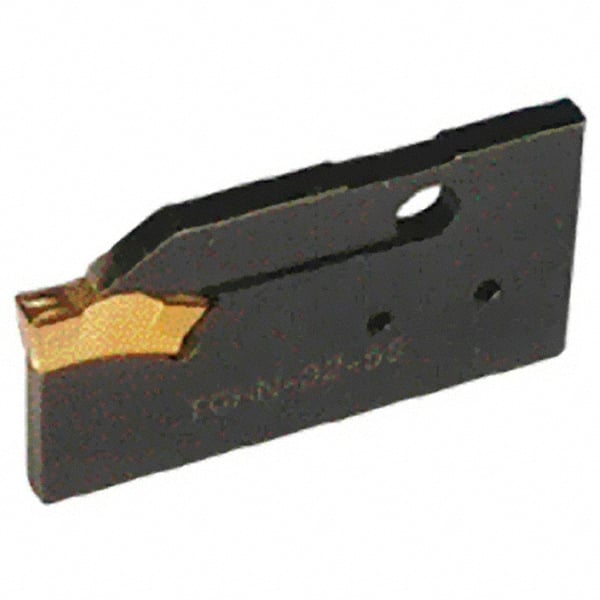

Iscar - 6 to 6.35mm Groove Width, 25mm Max Depth of Cut, Neutral Cut, TGHN Indexable Grooving Blade - TGMF (Full Radius), TGMF/P Insert Style, Series Top Grip
Item #: 60879129
Brand: Iscar
Model #: 2850049
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Blade Style | TGHN |
| Series | Top Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Maximum Groove Width (mm) | 6.35 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 55.70 |
| Overall Length (Decimal Inch) | 2.1929 |
| Insert Style | TGMF (Full Radius); TGMF/P |
| Complete Insert Compatibility | TGMF 630; TGMF 635-080 |
