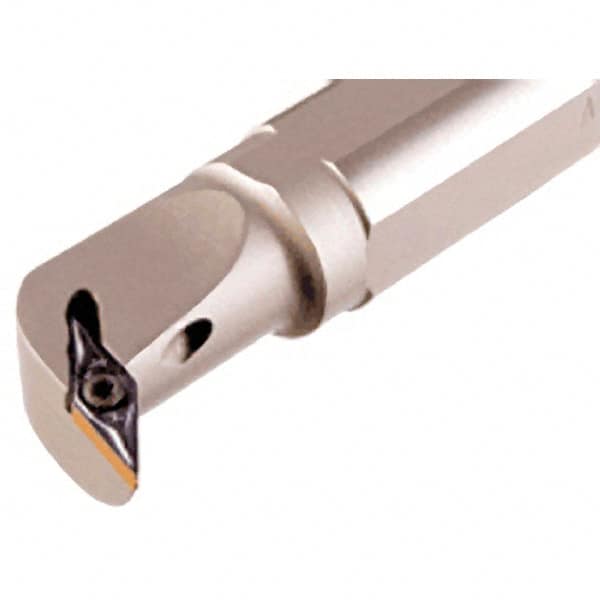

Iscar - 1.46" Min Bore Diam, 10" OAL, 1-1/4" Shank Diam, A-SVUN Indexable Boring Bar - 1.97" Max Bore Depth, VN.. 2.5 Insert
Item #: 60919347
Brand: Iscar
Model #: 3601238
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.4600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | VN.. 2.5 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.9100 |
| Rake Angle | -14 |
| Complete Insert Compatibility | VNGG 2.5-0-NF; VNGG 2.5-1-NF; VNMG 2.5-0-NF; VNMG 2.5-0-SF; VNMG 2.5-1-NF; VNMG 2.5-1-SF; VNMG 2.5-2-NF; VNMM 2.5-1-PP; VNMM 2.5-2-PP |
