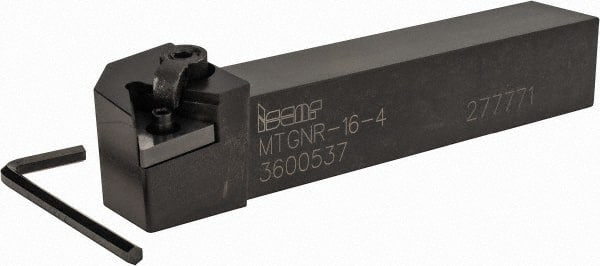

RH MTGN Negative Rake Indexable Turning Toolholder 90° Lead Angle, 1″ x 1″ Shank, Takes TN.. Inserts
Item #: 60921368
Brand: Iscar
Model #: 3606522
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | TNMG432-F3P |
| Toolholder Style | MTGN |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Insert Holding Method | Screw; Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Insert Compatibility | TN.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Isoturn |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.1900 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO 13399 |
| Coolant Through | No |
