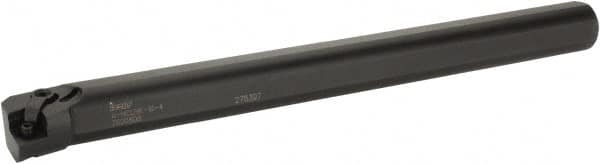

Iscar - 1-13/32" Min Bore Diam, 12" OAL, 1" Shank Diam, A-MCLN Indexable Boring Bar - 4" Max Bore Depth, CN.. 43.. Insert, Clamp Holding Method
Item #: 60922804
Brand: Iscar
Model #: 3600808
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MCLN |
| Series | Isoturn |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 1.4000 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 1.4063 |
| Minimum Bore Diameter (mm) | 35.56 |
| Minimum Bore Diameter (Inch) | 1-13/32 |
| Minimum Bore Diameter (Decimal Inch) | 1.4000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 101.60 |
| Maximum Bore Depth (Inch) | 4 |
| Maximum Bore Depth (Decimal Inch) | 1.5700 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CN.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6400 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -12 |
| Complete Insert Compatibility | CNGA 431T; CNGA 432E; CNGA 432T; CNGA 433T; CNGA 434T; CNGG 430-PP; CNGG 430.5-PP; CNMA 431; CNMA 432; CNMA 432F; CNMA 433; CNMA 434; CNMG 431-GN; CNMG 431-NF; CNMG 431-PP; CNMG 432-GN; CNMG 432-NF; CNMG 432-PP; CNMG 433-GN; CNMG 433-PP |
| Toolholder Material | Steel |
