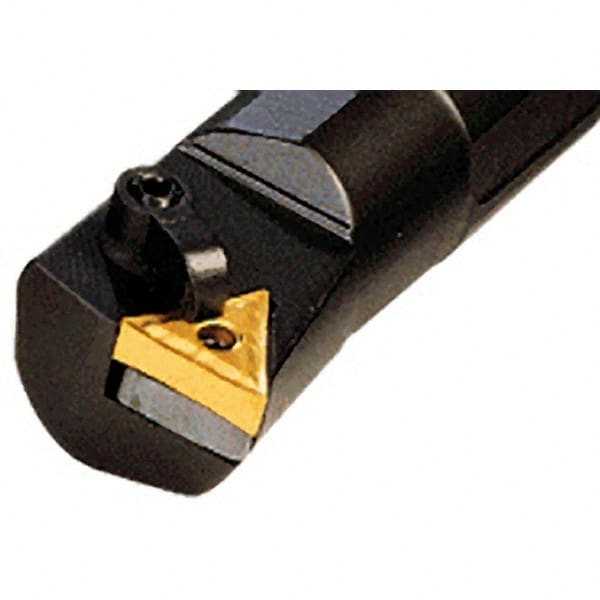

Iscar - 1.28" Min Bore Diam, 10" OAL, 1" Shank Diam, A-MTFN Indexable Boring Bar - TN.. 3.. Insert, Clamp Holding Method
Item #: 60922846
Brand: Iscar
Model #: 3600810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTFN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | TN.. 3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Rake Angle | -12 |
| Complete Insert Compatibility | TNGA 331T; TNGA 332E; TNGA 332T; TNGA 333T; TNGG 330.5-PP; TNMA 331; TNMA 332; TNMA 333; TNMA 334; TNMG 321-TF; TNMG 322-TF; TNMG 331-GN; TNMG 331-PP; TNMG 331-TF; TNMG 332-GN; TNMG 332-PP; TNMG 332-TF; TNMG 333-GN; TNMG 333-TF |
