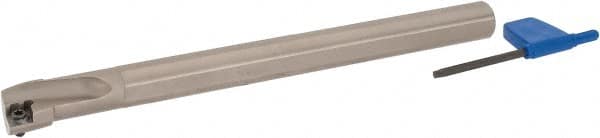

Iscar - 0.78" Min Bore Diam, 8" OAL, 5/8" Shank Diam, Indexable Boring Bar - 1.77" Max Bore Depth, CC.. 32.52 Insert, Screw Holding Method
Item #: 60923240
Brand: Iscar
Model #: 3600830
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.7800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CC.. 32.52 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.4400 |
