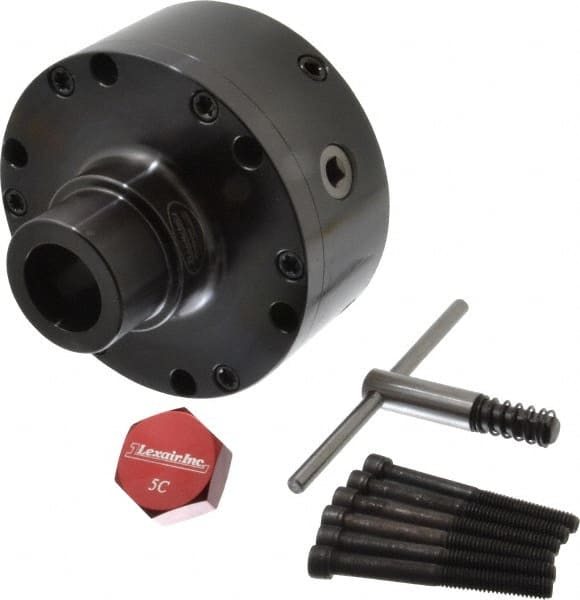

Lexair - 1-1/16 Inch Max Collet Capacity, 5C Collet Chuck - 4-23/32 Inch Overall Length, 3.5 Inch Projection
Item #: 60924131
Brand: Lexair
Model #: 72125-2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | 5C |
| Spindle Size | Flatback |
| Actuator Type | Wrench |
| Maximum Collet Capacity (Inch) | 1-1/16 |
| Projection (Decimal) | 3.5000 |
| Overall Length (Decimal) | 4.7190 |
| Through Coolant | Nonthrough Coolant |
| Maximum RPM | 4000.000 |
| Chuck Diameter (Decimal Inch) | 5.9500 |
| Nose Diameter (Decimal) | 2.1880 |
| PSC Code | 5136 |
