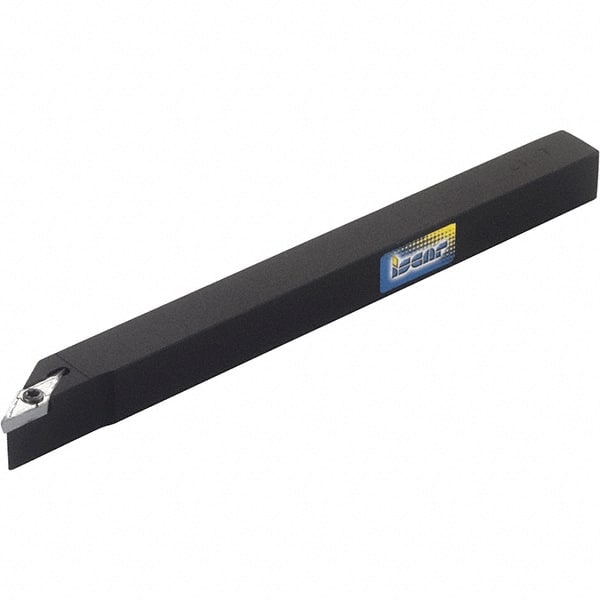

Iscar - SWAP, Left Hand Cut, 90° Lead Angle, 8mm Shank Height x 8mm Shank Width, Positive Rake Indexable Turning Toolholder - 140mm OAL, WPEX 0402.. Insert Compatibility, Series Isoturn
Item #: 60926185
Brand: Iscar
Model #: 3730095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SWAP |
| Rake | Positive |
| Rake Angle | 6 |
| Series | Isoturn |
| Lead Angle | 90 |
| Shank Width (mm) | 8.00 |
| Shank Width (Decimal Inch) | 0.3150 |
| Shank Height (mm) | 8.00 |
| Shank Height (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Insert Compatibility | WPEX 0402.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 8.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3189 |
