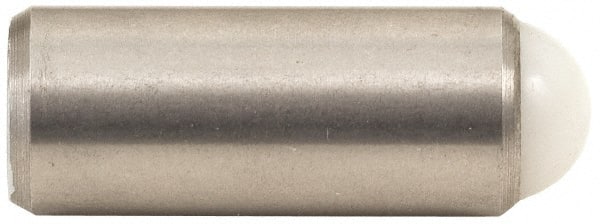

Gibraltar - 0.864" Body Length x 3/8" Body Diam, 2.5 Lb Init to 7 Lb Final End Force, Steel Press Fit Ball Plunger - 5/16" Ball Diam, 0.11" Max Ball Reach, +0.0010; +0.0020" Tolerance
Item #: 60932068
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.3750 |
| Body Length (Decimal Inch) | 0.8640 |
| Body Material | Steel |
| Ball Material | Delrin |
| Flange | No |
| Maximum Ball Reach (Decimal Inch) | 0.1100 |
| Initial End Force (Lb.) | 2.50 |
| Final End Force (Lb.) | 7.00 |
| Ball Diameter (Decimal Inch) | 0.3120 |
| Finish/Coating | Black Oxide |
| Tolerance (Decimal Inch) | +0.0010; +0.0020 |
| Locking Element | No |
