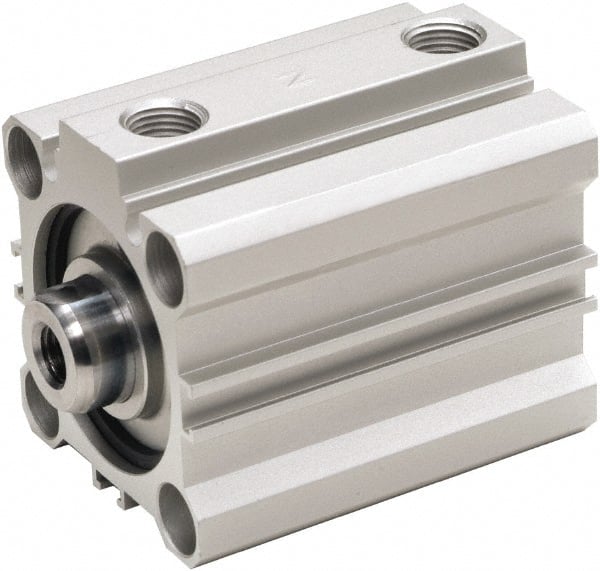

ARO/Ingersoll-Rand - 20mm Stroke x 100mm Bore Double Acting Air Cylinder - 3/8 Port, 3/4-16 Rod Thread, 140 Max psi, 15 to 140°F
Item #: 60939709
Brand: ARO/Ingersoll-Rand
Model #: MDS10-AAADN-020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (mm) | 100.00 |
| Rod Diameter (mm) | 30.00 |
| Stroke Length (mm) | 20.00 |
| Mounting Style | Through Hole |
| Port Size | 3/8 |
| Port Type | NPT |
| Width (mm) | 121.90 |
| Length (mm) | 95.00 |
| Material | Aluminum |
| Seal Material | Buna |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 3/4-16 |
| Style | Square |
| Cushions | None |
