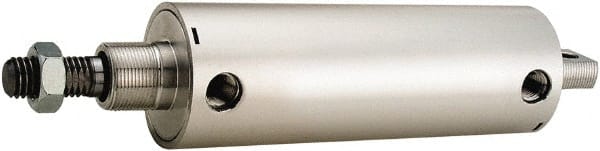

ARO/Ingersoll-Rand - 2-1/2" Stroke x 1-1/8" Bore Double Acting Air Cylinder - 1/8 Port, 3/8-16 Rod Thread, 200 Max psi, 180°F
Item #: 60939741
Brand: ARO/Ingersoll-Rand
Model #: 2318-1089-024
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/8 |
| Rod Diameter (Decimal Inch) | 0.380 |
| Stroke Length (Inch) | 2-1/2 |
| Mounting Style | Pivot |
| Port Size | 1/8 |
| Port Type | NPTF |
| Width (Decimal Inch) | 1.3750 |
| Length (Decimal Inch) | 6.970 |
| Material | Aluminum |
| Seal Material | Nitrile |
| Maximum Working Pressure (psi) | 200 |
| Rod Thread Size | 3/8-16 |
| Style | Female |
| Cushions | Non-Cushioned |
