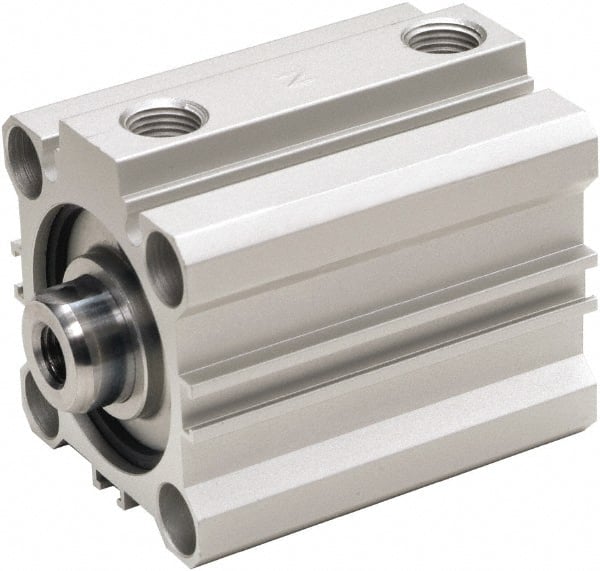

ARO/Ingersoll-Rand - 15mm Stroke x 32mm Bore Double Acting Air Cylinder - 1/8 Port, 5/16-24 Rod Thread, 140 Max psi, 15 to 140°F
Item #: 60940376
Brand: ARO/Ingersoll-Rand
Model #: MDS32-AAADN-015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (mm) | 32.00 |
| Rod Diameter (mm) | 16.00 |
| Stroke Length (mm) | 15.00 |
| Mounting Style | Through Hole |
| Port Size | 1/8 |
| Port Type | NPT |
| Width (mm) | 49.30 |
| Length (mm) | 55.00 |
| Material | Aluminum |
| Seal Material | Buna |
| Maximum Working Pressure (psi) | 140 |
| Rod Thread Size | 5/16-24 |
| Style | Square |
| Cushions | None |
