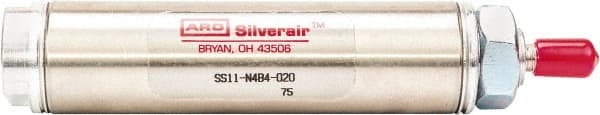

ARO/Ingersoll-Rand - 2" Stroke x 1-1/16" Bore Single Acting Air Cylinder - 1/8 Port, 5/16-24 Rod Thread, 200 Max psi, -40 to 160°F
Item #: 60940517
Brand: ARO/Ingersoll-Rand
Model #: SS11-N4B4-020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Bore Size (Inch) | 1-1/16 |
| Rod Diameter (Decimal Inch) | 0.312 |
| Stroke Length (Inch) | 2 |
| Mounting Style | Nose |
| Port Size | 1/8 |
| Port Type | NPT |
| Width (Decimal Inch) | 1.1200 |
| Length (Decimal Inch) | 5.120 |
| Material | Stainless Steel |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 200 |
| Rod Thread Size | 5/16-24 |
