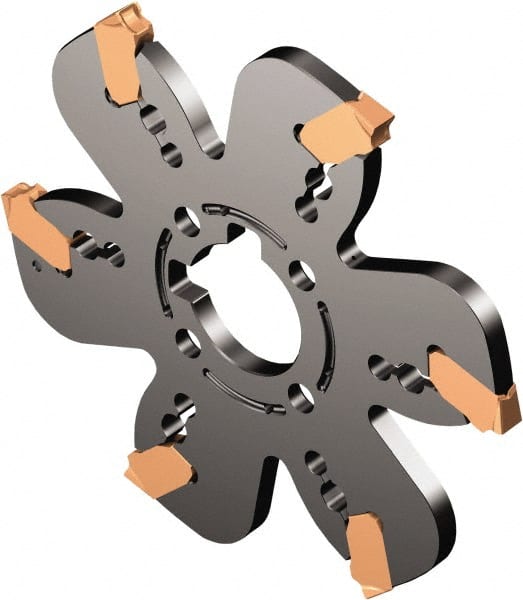

Sandvik Coromant - Arbor Hole Connection, 0.0941" Cutting Width, 1.4252" Depth of Cut, 152.4mm Cutter Diam, 1-1/2" Hole Diam, Indexable Slotting Cutter - 1-1/2" Shank Diam, AQD..Y..C Toolholder, Right Hand Cutting Direction
Item #: 61153656
Brand: Sandvik Coromant
Model #: 6657559
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Maximum Depth of Cut (mm) | 36.20 |
| Maximum Depth of Cut (Decimal Inch) | 1.4252 |
| Maximum Depth of Cut (Decimal Inch) | 1.4252 |
| Maximum Depth of Cut (mm) | 36.2 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1.5 |
| Modular Connection Size | Y38 |
| Toolholder Style | AQD..Y..C |
| Series | CoroMill QD |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 3600 |
| Maximum RPM | 3600 |
| Through Coolant | Yes |
| Complete Insert Compatibility1 | QD-NF-0239-020E-PM |
| Overall Height (mm) | 2.19 |
| Overall Height (Decimal Inch) | 0.0864 |
