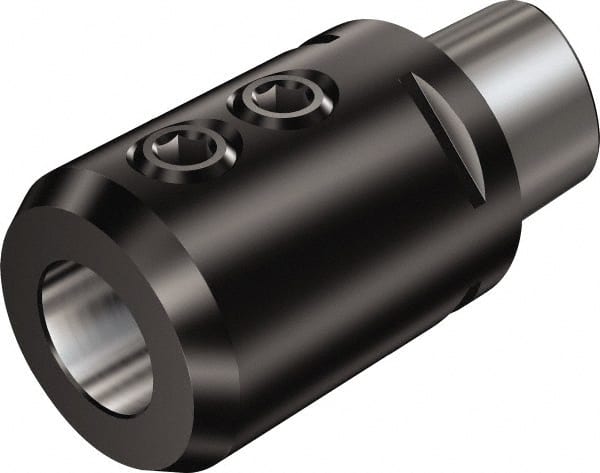

Sandvik Coromant - C6 Outside Modular Connection, 1-1/4" Hole Diam, Capto to Weldon Straight Shank Adapter - 85mm Projection, 54.4mm Nose Diam, 123mm OAL, Through Coolant
Item #: 61163473
Brand: Sandvik Coromant
Model #: 6078861
Exact Tooling IR#: 04
Features and Benefits
Straight shank adapters are used for holding straight shank tools in a tapered machine spindle.
| Product Specifications | |
|---|---|
| Type | Straight Shank Adapter |
| Taper Adapter Type | Capto to Weldon |
| Outside Modular Connection Size | C6 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 3.3465 |
| Projection (mm) | 85.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.1417 |
| Nose Diameter (mm) | 54.40 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Collar Diameter (Decimal Inch) | 2.4803 |
