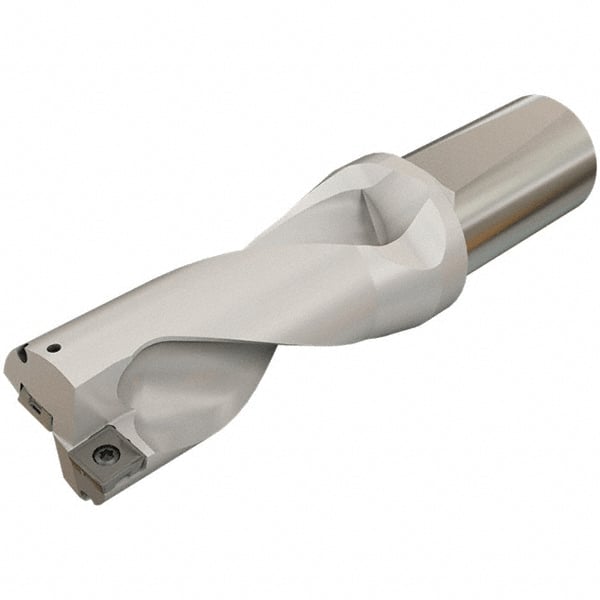

Iscar - 70mm Max Drill Depth, 2xD, 35mm Diam, Indexable Insert Drill - 32mm Shank Diam, Straight Shank
Item #: 61206082
Brand: Iscar
Model #: 3201767
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 35.00 |
| Drill Diameter (Decimal Inch) | 1.3780 |
| Maximum Drill Depth (mm) | 70.00 |
| Maximum Drill Depth (Decimal Inch) | 2.7559 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Maximum Drill Diameter (Decimal Inch) | 1.5945 |
| Maximum Drill Diameter (mm) | 40.50 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMT-HD |
| Body Length (Decimal Inch) | 4.1732 |
| Body Length (mm) | 106.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Collar Diameter (mm) | 50.00 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Series | DR-TWIST |
