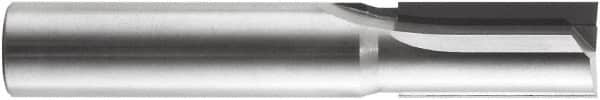

RobbJack - 1/8" Diam, 1/8" Shank Diam, 3/8" Length of Cut, 2 Flute Square End Straight Router Bit - 1-1/2" Overall Length, Right Hand Cut, Solid Carbide
Item #: 61244554
Brand: RobbJack
Model #: PCD-203-04
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 3.18 |
| Cutting Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 9.53 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 3/8 |
| Material Application | Aluminum; Brass; Composite; Copper; Magnesium; Plastics |
| Material | Solid Carbide |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Router Style | Straight |
| Piloted | No |
| Flute Type | Straight |
