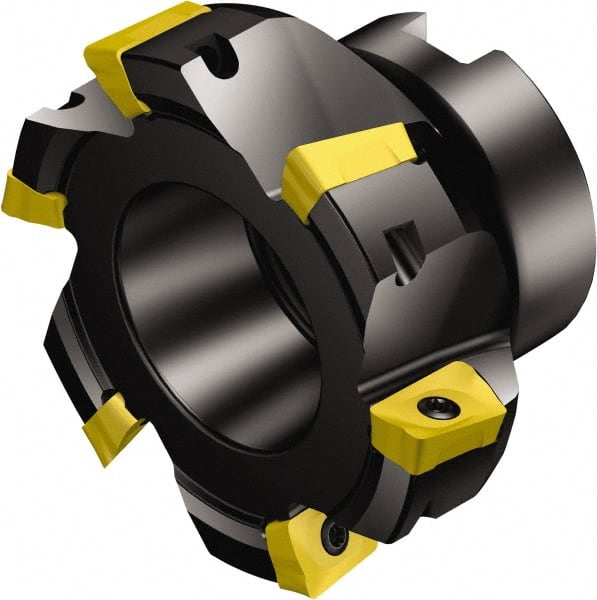

Sandvik Coromant - 7 Inserts, 3" Cut Diam, 1" Arbor Diam, 15.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50.0126mm High, R390-17.. Insert Compatibility, Series CoroMill 390
Item #: 61282968
Brand: Sandvik Coromant
Model #: 5739777
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | R390-17.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | RA390 |
| Number of Flutes | 7 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Keyway Width (mm) | 9.75 |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum Body Diameter (Decimal Inch) | 2.9370 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 14800 |
| Pitch | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.6181 |
| ISO Number | RA390-076R25-17H |
| Complete Insert Compatibility | R390-17.. |
| Toolholder Material | Steel |
