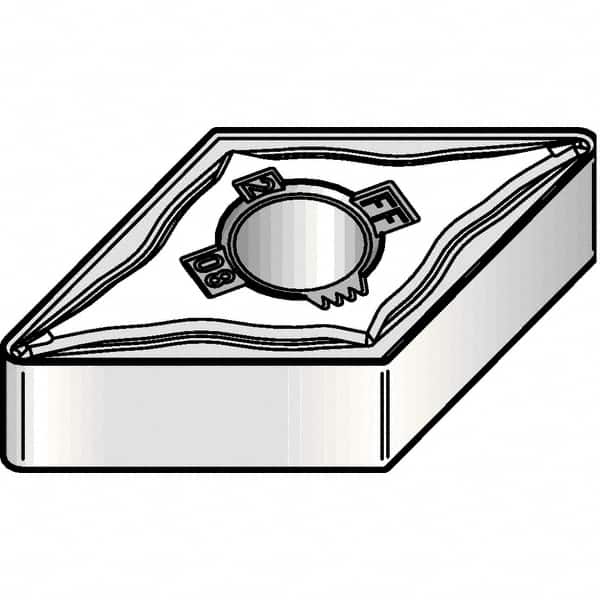

Kennametal - DNMG332 FF Grade KCP05B Carbide Turning Insert - TiOCN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 61291522
Brand: Kennametal
Model #: 5892659
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCP05B |
| Coating | TiOCN |
| Chip Breaker | FF |
| Insert Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMG110408FF |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG332FF |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
