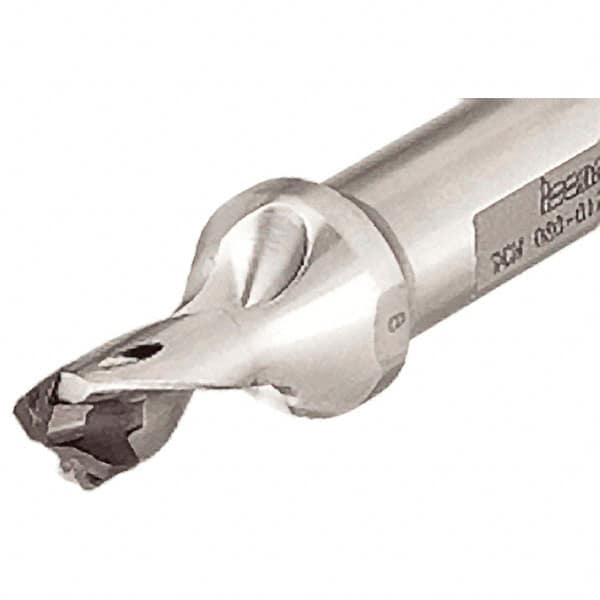

Iscar - 9.5 to 9.9mm Diam, 1.5xD, 15.7mm Max Drill Depth, 12mm Shank Diam, 75.1mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 9 Seat Size, DCN Toolholder, Series SumoCham
Item #: 61334058
Brand: Iscar
Model #: 3203335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (mm) | 9.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 15.70 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 9 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 1.73 |
| Flute Length (mm) | 15.70 |
| Body Length (mm) | 30.10 |
| Overall Length (mm) | 75.10 |
| Shank Length (mm) | 45.00 |
