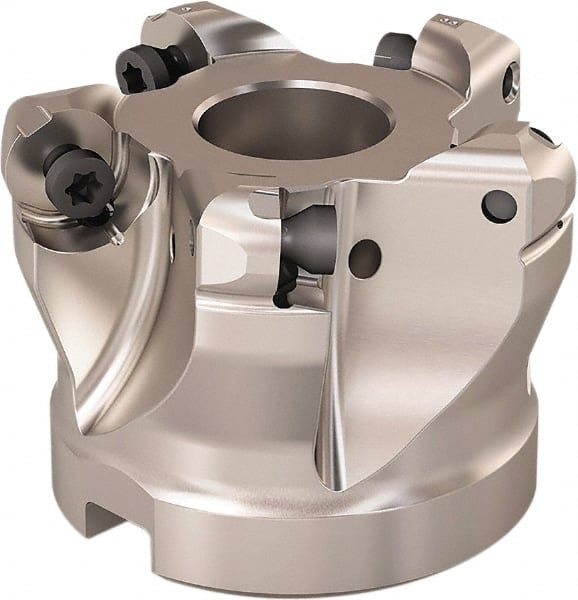

Seco - 2" Cut Diam, 0.236" Max Depth, 3/4" Arbor Hole, 5 Inserts, RP..12.. Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 12,500 Max RPM, 1-1/2 High, Through Coolant, Series R220.29
Item #: 61380069
Brand: Seco
Model #: 13717
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Series | R220.29 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP..12.. |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 12500 |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.000 |
