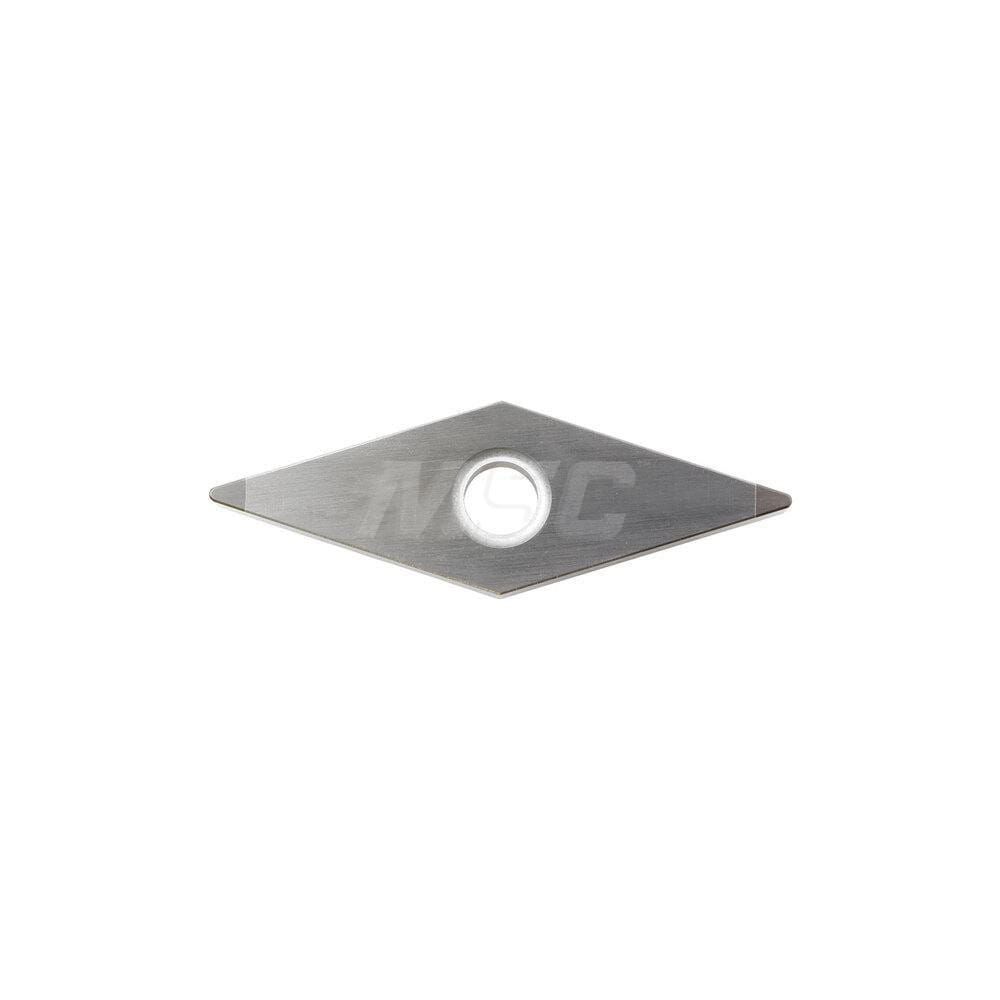

Turning Insert: VNGA3305S00525MEKBN25M, CBN
Item #: 73445298
Brand: Kyocera
Model #: TBZ06006
Product Specifications
| ANSI Insert Code | VNGA3305 |
| ISO Insert Code | VNGA160402 |
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35 |
| Manufacturer Grade | KBN25M |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | CBN |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | VNGA160402S01225ME |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TBZ06006 |
| Material Grade | Micrograin |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNGA3305S00525MEKBN25M |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
| Tip Length (Decimal Inch) | 0.0906 |
| ANSI Size Code | 3305 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3305 |
| ANSI Insert Code | VNGA3305 |
| ISO Insert Code | VNGA160402 |
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35 |
| Manufacturer Grade | KBN25M |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | CBN |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | VNGA160402S01225ME |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TBZ06006 |
| Material Grade | Micrograin |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Cutting Edge Style | Honed |
| Industry Standard Number | VNGA3305S00525MEKBN25M |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
| Tip Length (Decimal Inch) | 0.0906 |
| ANSI Size Code | 3305 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3305 |
| MSC Part # | 73445298 |
| Mfr Part # | TBZ06006 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
