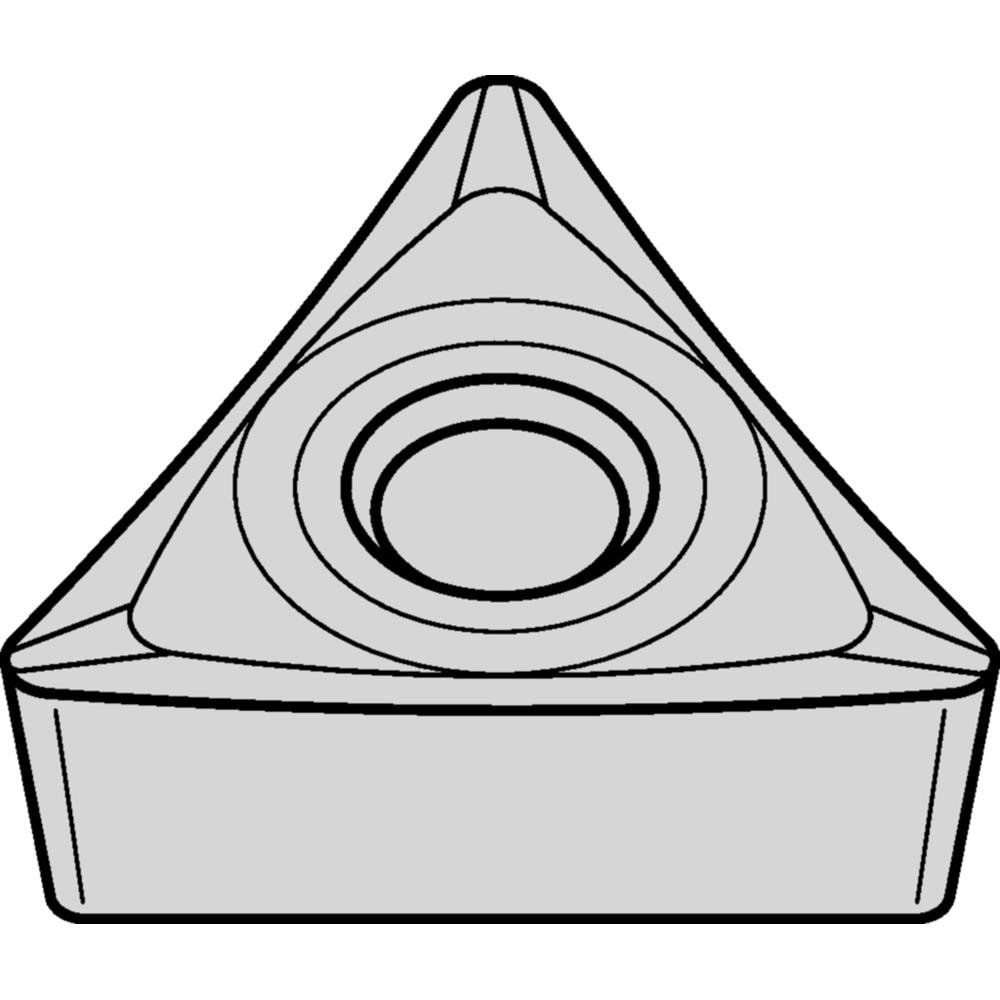

Turning Insert: TPGT2151HP, Carbide
Item #: 69963841
Brand: Widia
Model #: 2823592
Product Specifications
| ANSI Insert Code | TPGT2151 |
| ISO Insert Code | TPGT110204 |
| Relief Angle | 11 |
| Insert Style | TPGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | CG5 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | TPGT-HP |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Maximum Depth of Cut (Decimal Inch) | 0.1444 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TPGT110204HP |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2823592 |
| Material Grade | Submicron |
| Proprietary Coating Designation | TiN |
| Coating Classification | PVD |
| Chip Breaker | HP |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPGT2151HP |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
| ANSI Size Code | 2151 |
| ISO Size Code | 110204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
| ANSI Insert Code | TPGT2151 |
| ISO Insert Code | TPGT110204 |
| Relief Angle | 11 |
| Insert Style | TPGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | CG5 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | TPGT-HP |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Maximum Depth of Cut (Decimal Inch) | 0.1444 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TPGT110204HP |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2823592 |
| Material Grade | Submicron |
| Proprietary Coating Designation | TiN |
| Coating Classification | PVD |
| Chip Breaker | HP |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPGT2151HP |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
| ANSI Size Code | 2151 |
| ISO Size Code | 110204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
| MSC Part # | 69963841 |
| Mfr Part # | 2823592 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
