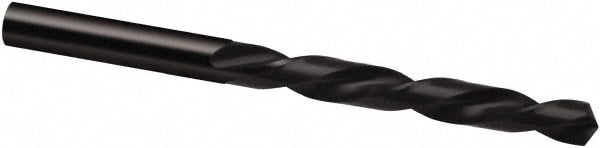

Jobber Drill: 10.70 mm Dia, 118 deg Point, High Speed Steel
Item #: 69327757
Brand: Guhring
Model #: 9002080107000
Product Specifications
| Drill Bit Size (mm) | 10.70 |
| Drill Bit Size (Decimal Inch) | 0.4213 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Overall Length (mm) | 142.00 |
| Overall Length (Decimal Inch) | 5.5906 |
| Spiral Type | Regular |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7008 |
| Proprietary Coating/Finish | Steam Oxide |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.7 |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 10.70 |
| Drill Bit Size (Decimal Inch) | 0.4213 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Overall Length (mm) | 142.00 |
| Overall Length (Decimal Inch) | 5.5906 |
| Spiral Type | Regular |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7008 |
| Proprietary Coating/Finish | Steam Oxide |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.7 |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69327757 |
| Mfr Part # | 9002080107000 |
| Country of Origin Country of Origin is subject to change | Germany |
