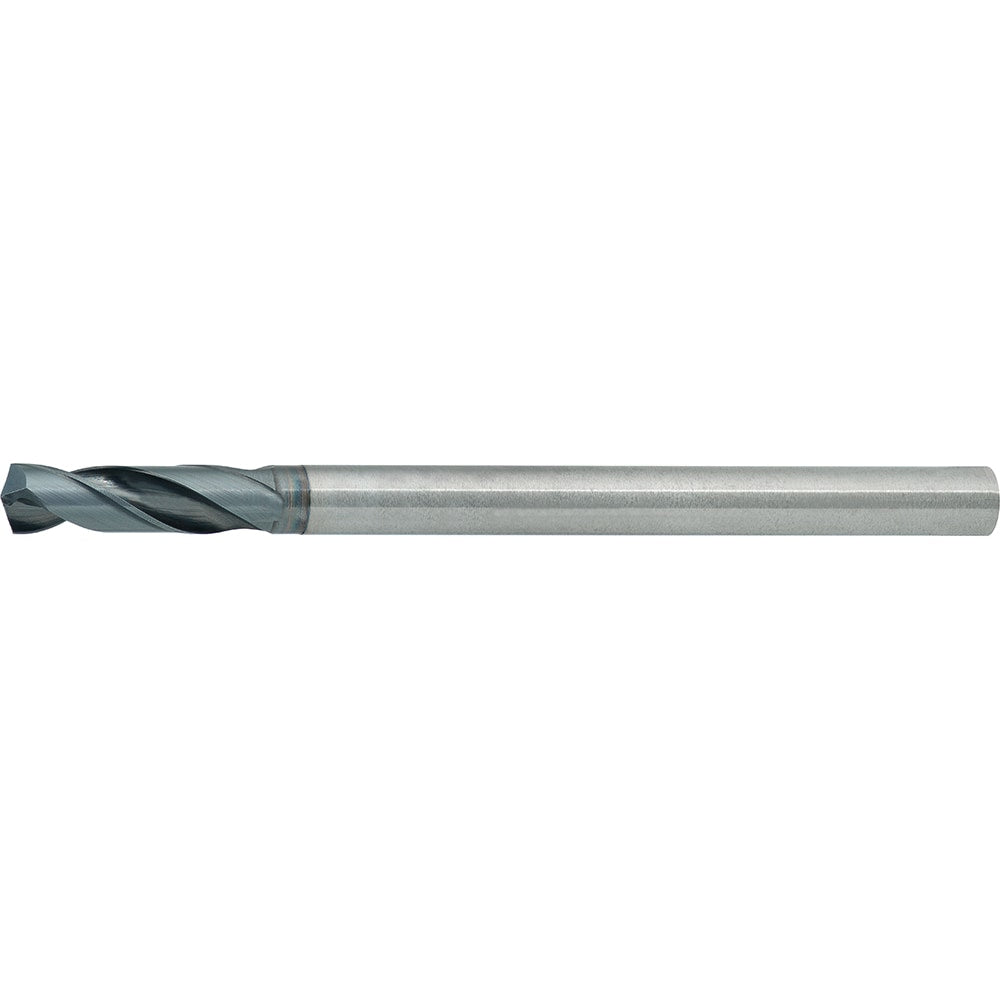

Extra Length Drill Bit: 0.2205", 140 °, Carbide
Item #: 71032296
Brand: Mitsubishi
Model #: 10607619
Product Specifications
| Drill Bit Size (mm) | 5.60 |
| Overall Length (mm) | 67.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 24.00 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2205 |
| Drill Point Length (mm) | 1.00 |
| Drill Point Length (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 2.6378 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.6142 |
| Shank Length (mm) | 41.000 |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.4803 |
| Maximum Drilling Depth (mm) | 12.20 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 5.60 |
| Overall Length (mm) | 67.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 24.00 |
| Point Type | X-Thinning |
| Series | DWAE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Structural Steel; Iron; Steel; Tempered Steel |
| Secondary Workpiece Material Code | P; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2205 |
| Drill Point Length (mm) | 1.00 |
| Drill Point Length (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 2.6378 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.6142 |
| Shank Length (mm) | 41.000 |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.4803 |
| Maximum Drilling Depth (mm) | 12.20 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 71032296 |
| Mfr Part # | 10607619 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
