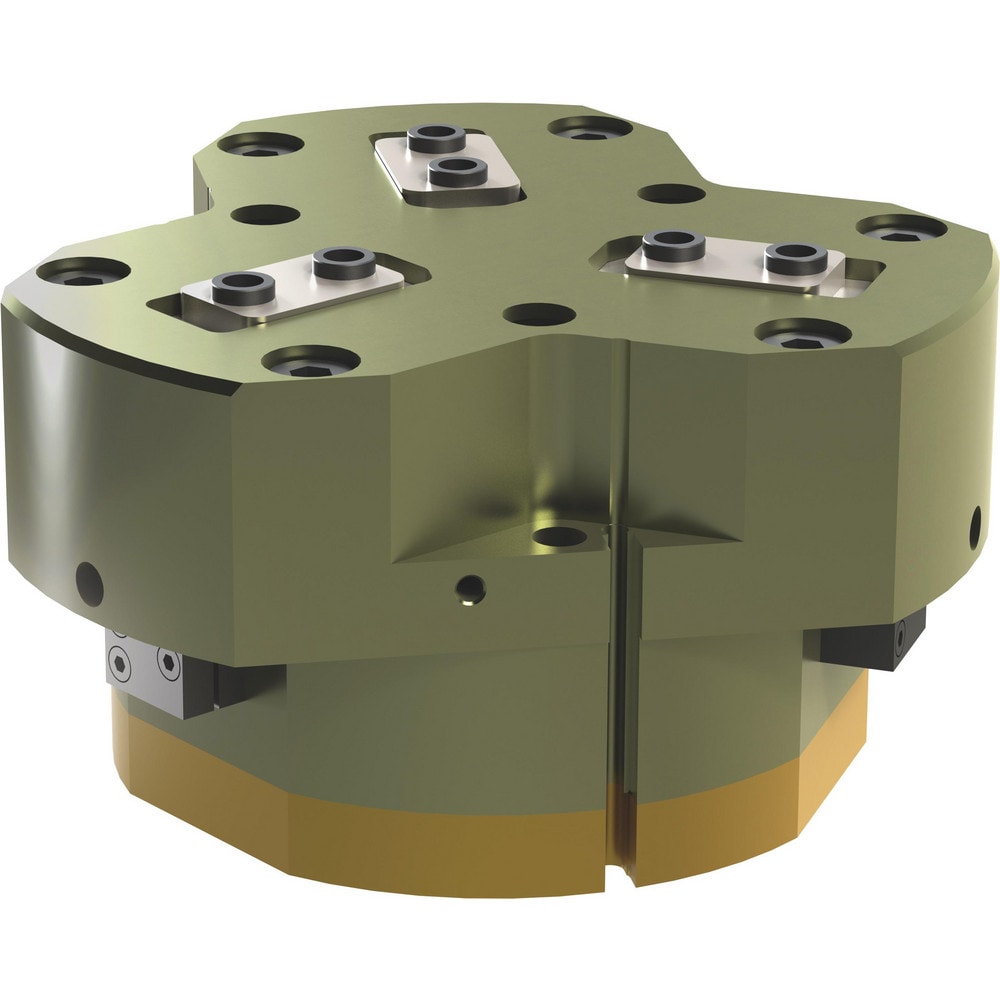

Air Grippers; Grip Type: 3-Jaw Parallel Gripper; Grip Style: Parallel; Holding Type: Internal, External; Operating Pressure (psi): 30 to 100; Action: Double; Maximum Working Pressure (bar): 7; Maximum Working Pressure (Psi
Item #: 68188853
Brand: De-Sta-Co
Model #: RTH-5M-L
Product Specifications
| Grip Type | 3-Jaw Parallel Gripper |
| Grip Style | Parallel |
| Holding Type | Internal; External |
| Operating Pressure (psi) | 30 to 100 |
| Action | Double |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Port Size | G1/8 |
| External Holding Force | 927.00 |
| Open Width (Decimal Inch) | 4.96 |
| Minimum Working Temperature (Deg F) | -30 |
| Minimum Working Temperature (Deg C) | -35 |
| Maximum Working Temperature (F) | 180.000 |
| Maximum Operating Frequency | 315 cpm |
| Overall Length (mm) | 88.0000 |
| Maximum Working Temprature (Deg C) | 80 |
| Closing Stroke (Decimal Inch) | 1.02 |
| UNSPSC Code | 31251504 |
| Grip Type | 3-Jaw Parallel Gripper |
| Grip Style | Parallel |
| Holding Type | Internal; External |
| Operating Pressure (psi) | 30 to 100 |
| Action | Double |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Port Size | G1/8 |
| External Holding Force | 927.00 |
| Open Width (Decimal Inch) | 4.96 |
| Minimum Working Temperature (Deg F) | -30 |
| Minimum Working Temperature (Deg C) | -35 |
| Maximum Working Temperature (F) | 180.000 |
| Maximum Operating Frequency | 315 cpm |
| Overall Length (mm) | 88.0000 |
| Maximum Working Temprature (Deg C) | 80 |
| Closing Stroke (Decimal Inch) | 1.02 |
| UNSPSC Code | 31251504 |
| MSC Part # | 68188853 |
| Mfr Part # | RTH-5M-L |
| Country of Origin Country of Origin is subject to change | France |
