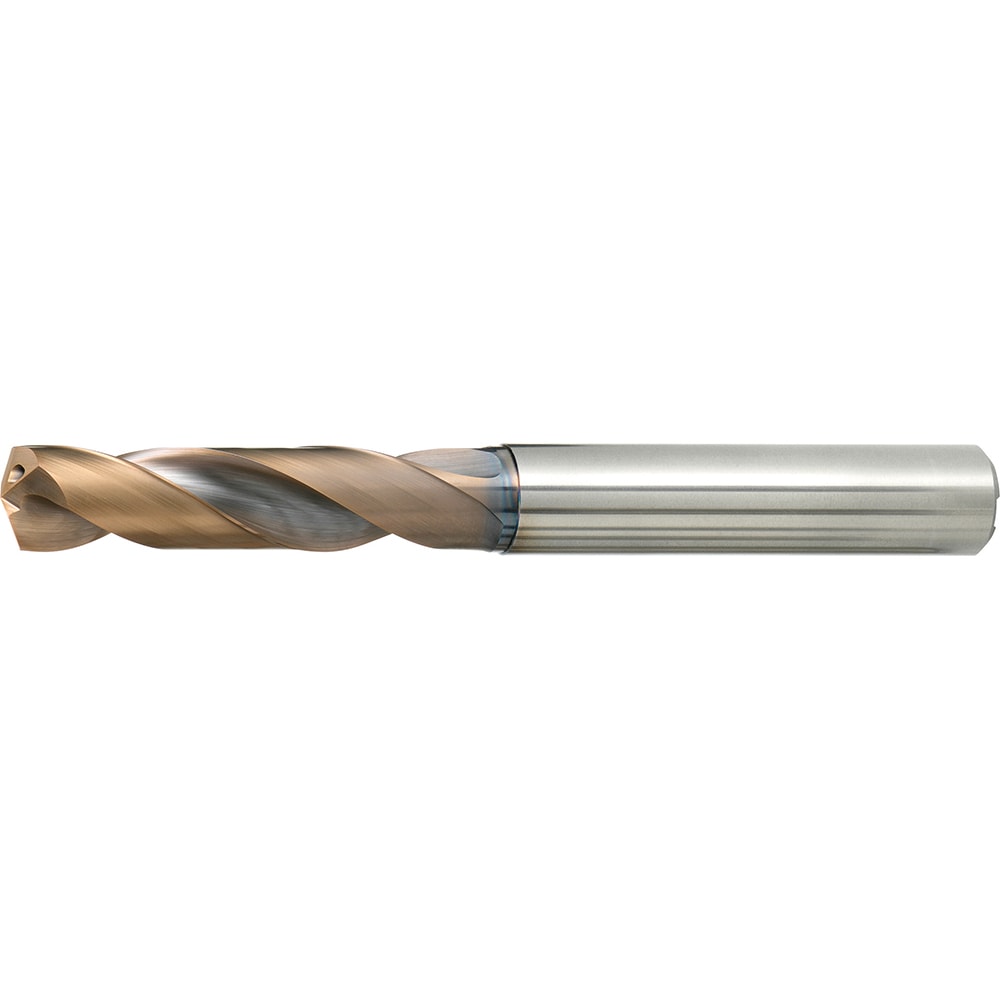

Extra Length Drill Bit: 0.2677", 140 °, Carbide
Item #: 70551213
Brand: Mitsubishi
Model #: 10604595
Product Specifications
| Drill Bit Size (mm) | 6.80 |
| Overall Length (mm) | 91.2000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 36.20 |
| Point Type | X-Thinning |
| Series | DSAS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Holemaking |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Drill Point Length (mm) | 1.20 |
| Drill Point Length (Decimal Inch) | 0.0472 |
| Overall Length (Decimal Inch) | 3.5906 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (Decimal Inch) | 2.0866 |
| Shank Length (mm) | 53.000 |
| Flute Length (Decimal Inch) | 1.4252 |
| Flute By Diameter Ratio | 3xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8504 |
| Maximum Drilling Depth (mm) | 21.60 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 6.80 |
| Overall Length (mm) | 91.2000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 36.20 |
| Point Type | X-Thinning |
| Series | DSAS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Holemaking |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2677 |
| Drill Point Length (mm) | 1.20 |
| Drill Point Length (Decimal Inch) | 0.0472 |
| Overall Length (Decimal Inch) | 3.5906 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (Decimal Inch) | 2.0866 |
| Shank Length (mm) | 53.000 |
| Flute Length (Decimal Inch) | 1.4252 |
| Flute By Diameter Ratio | 3xD |
| Maximum Drilling Depth (Decimal Inch) | 0.8504 |
| Maximum Drilling Depth (mm) | 21.60 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 70551213 |
| Mfr Part # | 10604595 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
