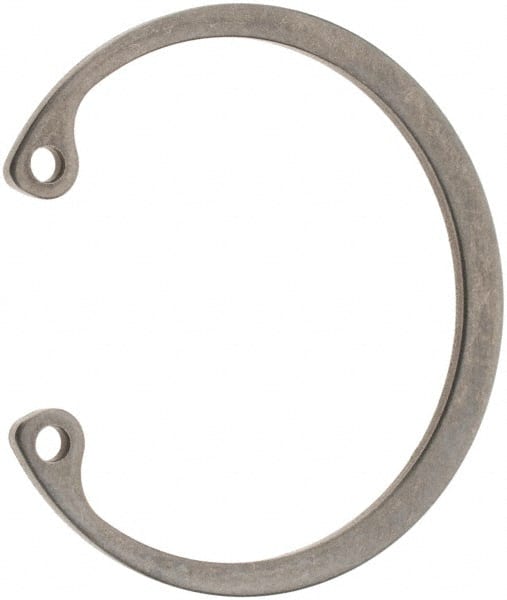

Made in USA - 1-3/8" Nominal, 0.05" Thick, Stainless Steel Snap Internal Retaining Ring - 0.056" Groove Width, 0.043" Groove Depth, 1.461" Groove Diam
Item #: 61439899
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-3/8 |
| Bore Diameter (Decimal Inch) | 1.3750 |
| Nominal Size (Inch) | 1-3/8 |
| Groove Diameter (Decimal Inch) | 1.4610 |
| Groove Width (Decimal Inch) | 0.0560 |
| Inside Diameter (Decimal Inch) | 0.8400 |
| Free Outside Diameter (Decimal Inch) | 1.5260 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Groove Depth (Decimal Inch) | 0.0430 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
