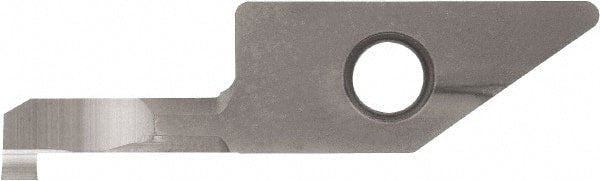

Kyocera - 1mm Groove Width, 4mm Min Hole Diam, 11mm Max Hole Depth, Micro Internal Grooving Tool - 0.8mm Projection, 18.8mm Shank Length, 30.8mm OAL, 0.05mm Radius, Solid Carbide, Uncoated
Item #: 61446688
Brand: Kyocera
Model #: 8803812
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Micro Internal |
| Material | Solid Carbide |
| Groove Width (Decimal Inch) | 0.039370 |
| Groove Width (mm) | 1.00 |
| Projection (Decimal Inch) | 0.0315 |
| Projection (mm) | 0.80 |
| Minimum Hole Diameter (Decimal Inch) | 0.1575 |
| Minimum Hole Diameter (mm) | 4.00 |
| Maximum Hole Depth (Decimal Inch) | 0.4331 |
| Maximum Hole Depth (mm) | 11.00 |
| Overall Length (Decimal Inch) | 1.2126 |
| Overall Length (mm) | 30.80 |
| Finish/Coating | Uncoated |
| Shank Length (mm) | 18.80 |
| Radius (Decimal Inch) | 0.001969 |
| Radius (mm) | 0.05 |
| Manufacturer Grade | KW10 |
