Turning Insert: CCMT21.52PSS AH8005, Carbide

Item #: 20857132
Brand: Tungaloy
Model #: 6749947

Product Specifications

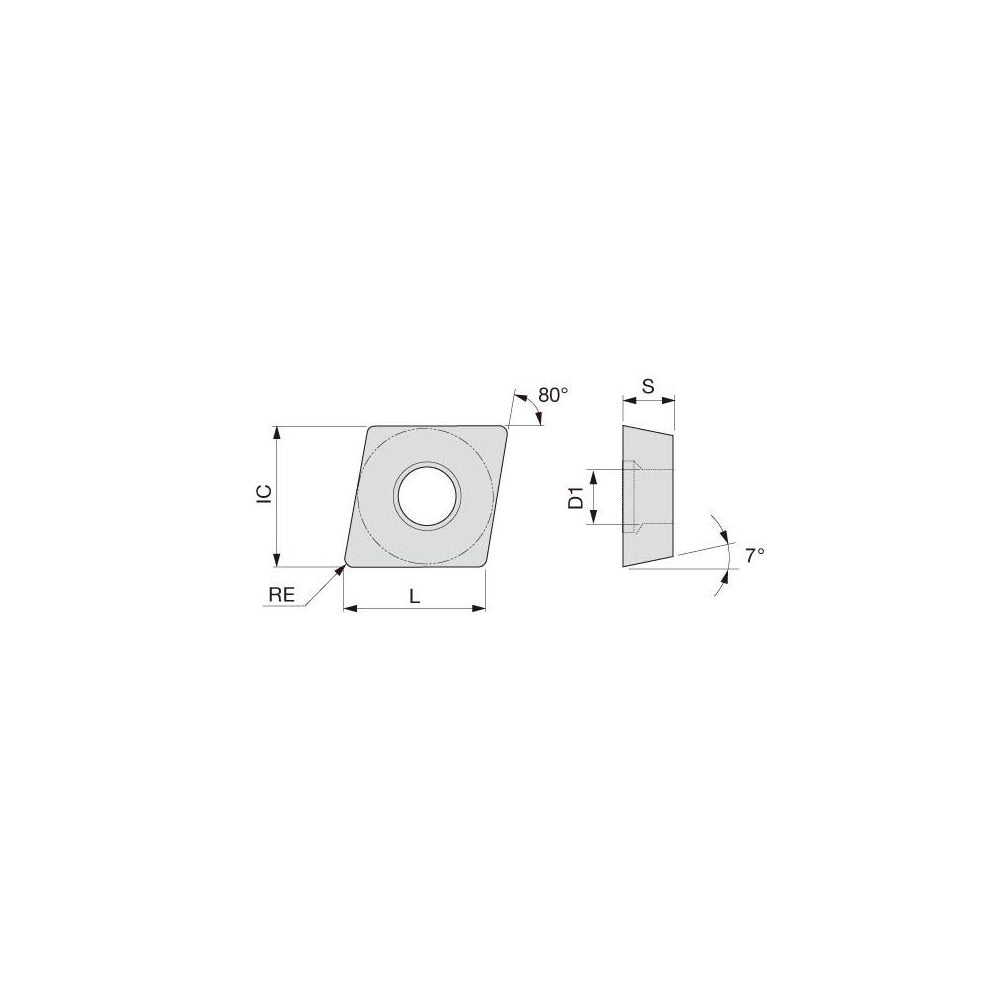

ANSI Insert Code CCMT21.52

ISO Insert Code CCMT060208

Relief Angle 7

Insert Style CCMT

Corner Radius (Inch) 1/32

Corner Radius (Decimal Inch) 0.0315

Included Angle 80

Manufacturer Grade AH8005

Coating/Finish TiAlN

Wiper Edge No

Insert Hand Neutral

Insert Thickness (Inch) 3/32

Insert Thickness (Decimal Inch) 0.0938

Series CCMT-PSS

Inscribed Circle (Decimal Inch) 0.2500

Inscribed Circle (Inch) 1/4

Insert Material Carbide

Insert Shape C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation Finishing

Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness

Side Clearance Positive

Number Of Cutting Edges 2

Insert Shape Code C

Hole Diameter (Decimal Inch) 0.1100

Maximum Depth of Cut (Decimal Inch) 0.0787

Insert Holding Method Screw

Width (Inch) 1/4

Clearance Code C

Tolerance Code M

Coating Process PVD

Length Range (Decimal Inch) 0.0000 - 0.3000

Rake Positive

Insert Length (Decimal Inch) 0.2560

Primary Workpiece Material Hard Material; Stainless Steel; Superalloys & Titanium

Primary Workpiece Material Code S; H; M

Iso Code CCMT060208-PSS AH8005

Standards ISO; ANSI

Manufacturers Catalog Number 6749947

Material Grade S10; S01; M10; M01

Coating Classification PVD

Chip Breaker PSS

Rake Angle 10

Cutting Edge Style Honed; Chamfered

Industry Standard Number CCMT 21.52 PSS

Width (Decimal Inch - 4 Decimals) 0.2500

Multi-Use Tool Yes

Full Radius No

Multi-Use Application Facing; Turning; Boring

ANSI Size Code 21.52

ISO Size Code 060208

UNSPSC Code 23242105

Insert Size Code 21.52
