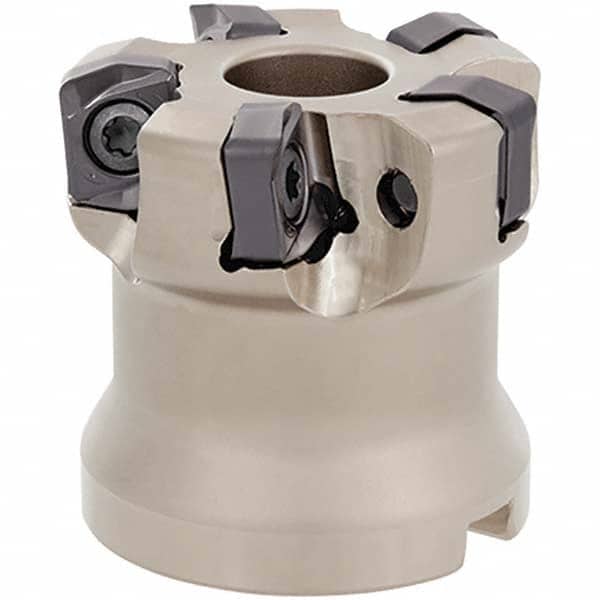

5″ Cut Diam, 1-1/2″ Arbor Hole, Indexable High-Feed Face Mill
Item #: 61546008
Brand: Tungaloy
Model #: 6710727
Product Specifications
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Minimum Cutting Diameter | 4.512 in |
| Maximum Cutting Diameter | 5 in |
| Maximum Depth Of Cut | 0.059 in |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | LN U06 |
| Series | TXN06 |
| Cutter Style | TXN06 |
| Number of Cutter Inserts | 12 |
| Through Coolant | Normal Pressure |
| Keyway Width | 0.626 in |
| Overall Height | 2.48 in |
| Standards | ISO |
| Insert Holding Method | Screw |
| Number of Flutes | 12 |
