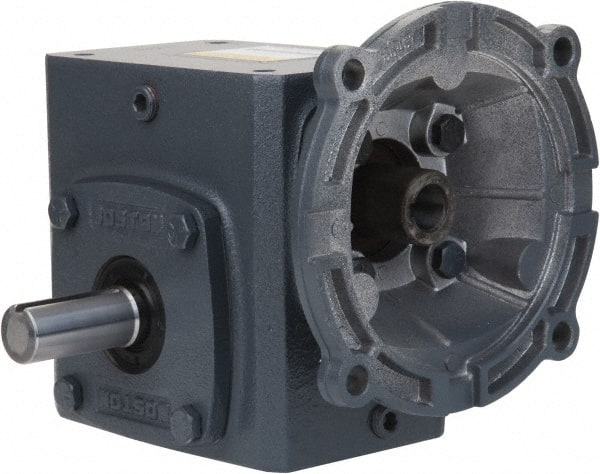

Boston Gear - 3 Centerline Distance, 15:1, 117 RPM Output, 3.97 Input Horsepower, 1,969 Lbs. Max Torque, Speed Reducer - Part No. F730-15-B7-G, 1-1/4" Shaft Diam, Single Shaft Left, 7/8" Bore, 8.88" High, 140TC NEMA
Item #: 61571196
Brand: Boston Gear
Model #: 60688
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.000 |
| Ratio | 15:1 |
| NEMA Size | 140TC |
| PartNo | F730-15-B7-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 8.88 |
| Maximum Torque Inch/Lbs (Pounds) | 1969.00 |
| Maximum Input Horsepower | 3.97 |
| Output RPM at 1750 Input | 117.0 |
