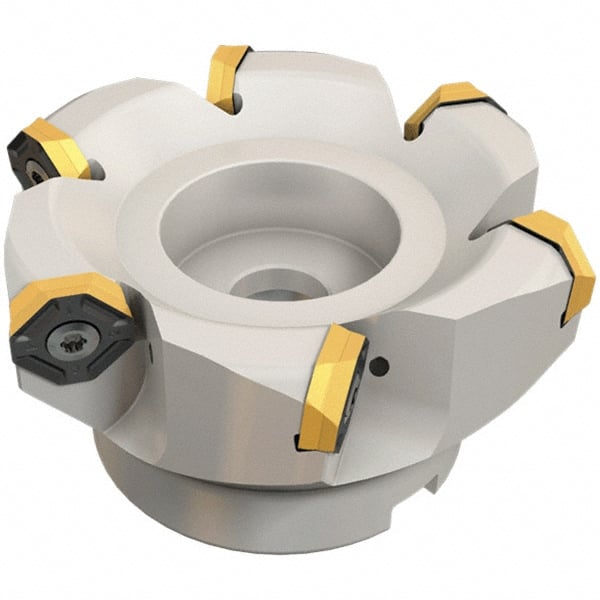

Iscar - 8.37" Cut Diam, 2-1/2" Arbor Hole, 0.18" Max Depth of Cut, 50° Indexable Chamfer & Angle Face Mill - 14 Inserts, IQ845 SYHU 07.. Insert, Right Hand Cut, Series DoveIQMill
Item #: 61590139
Brand: Iscar
Model #: 3107005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 8.3700 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 50 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | IQ845 SYHU 07.. |
| Series | DoveIQMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | IQ845 FSY-R07 |
| Hub Diameter (Decimal Inch) | 5.3000 |
| Keyway Width (Inch) | 1 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 4.0000 |
| Complete Insert Compatibility | IQ845 SYHU 070400ADN; IQ845 SYHU 070400N-MM; IQ845 SYHU 0704ADN; IQ845 SYHU 0704ADN-MM; IQ845 SYHU 0704ADTN |
