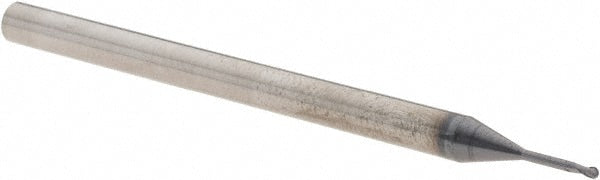

Ball End Mill: 1/32" Dia, 3/64" LOC, 2 Flute, Solid Carbide
Item #: 37257896
Brand: YG-1
Model #: GM967002
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0313 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/64 |
| Coating/Finish | TiAlN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 3/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.0500 |
| Length Type | Extended |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.0290 |
| Nose Radius (Decimal Inch) | 0.0157 |
| Neck Length (Inch) | 11/64 |
| Neck Length (Decimal Inch) | 0.1720 |
| Reach Length (Inch) | 7/32 |
| Reach Length (Decimal Inch) | 0.2190 |
| Mill Diameter Tolerance | +0.0000/-0.0006 in |
| Shank Diameter Tolerance | +0.0000/-0.0003 in |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | GM967 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0470 |
| Manufacturers Catalog Number | GM967002 |
| System Of Measurement | Fractional Inch |
