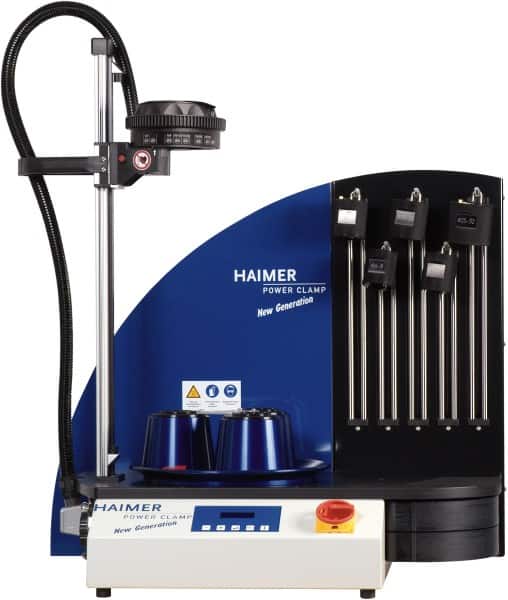

HAIMER - 1/8 to 1-1/4 Inch Shrinking Diameter Range with First Coil, Carbide and High Speed Steel Shrink Fit Unit - 1.77 Inch Wide, 22.4409 Inch High, 50.00mm Diameter with Second Coil, 400 to 480 Volts
Item #: 61771507
Brand: HAIMER
Model #: 80.100.01NG.3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Power Clamp |
| Compatible Tool Material | Carbide & High Speed Steel |
| Shrinking Diameter Range with First Coil (mm) | 3.00-32.00 |
| Shrinking Diameter Range with First Coil (Inch) | 1/8 - 1-1/4 |
| Maximum Diameter with Second Coil (mm) | 50.00 |
| Height (Decimal Inch) | 22.4409 |
| Width (Decimal Inch) | 1.7700 |
| Voltage | 400 to 480 |
| Description | Power Clamp Comfort NG |
| Series | PROFI LINE |
