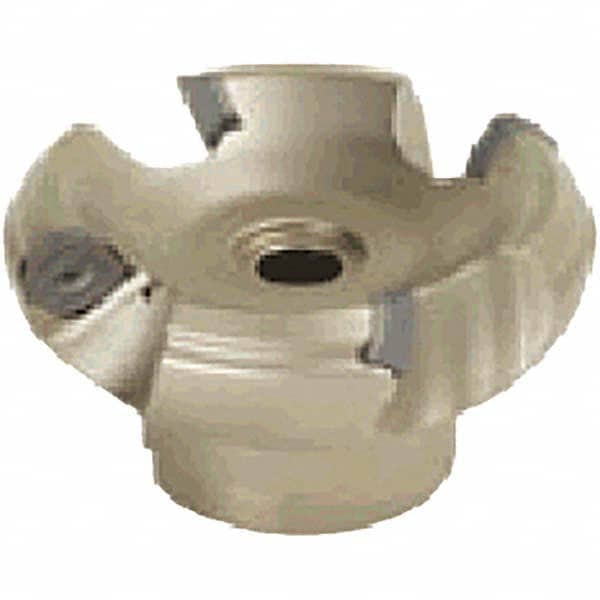

Indexable Chamfer & Angle Face Mill
Item #: 61808218
Brand: Tungaloy
Model #: 6848583
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.5140 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | SW T13 |
| Cutter Style | TAW13R |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Series | TAW |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Keyway Width (Decimal Inch) | 0.6260 |
| Overall Height (Decimal Inch) | 2.4800 |
| Standards | ISO |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
