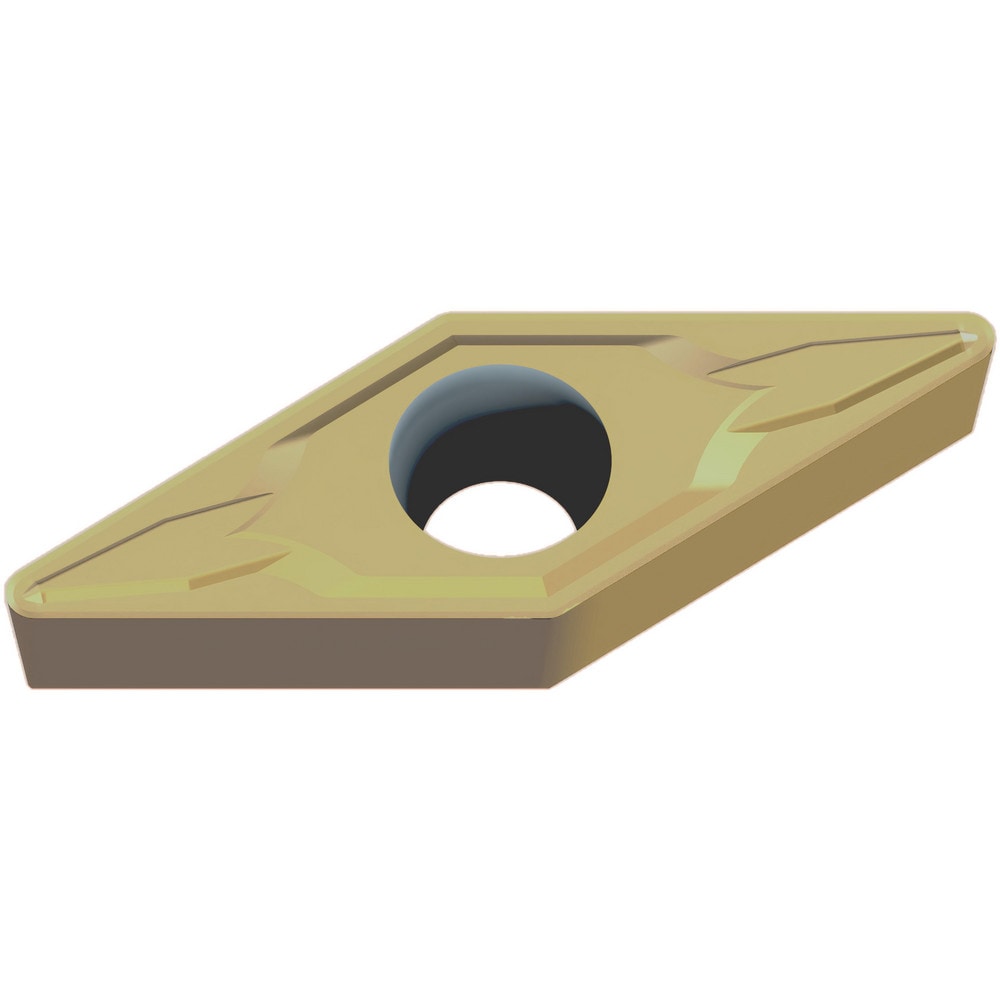

Turning Insert: VCMT331LP MP3025, Cermet
Item #: 06000020
Brand: Mitsubishi
Model #: 692465
Product Specifications
| ANSI Insert Code | VCMT331 |
| ISO Insert Code | VCMT160404 |
| Relief Angle | 7 |
| Insert Style | VCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | MP3025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Cermet |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | LP |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
