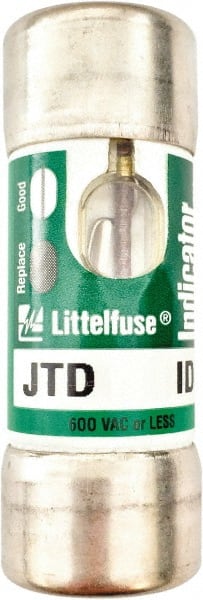

Littelfuse - 300 VDC, 600 VAC, 4 Amp, Time Delay General Purpose Fuse - 2-1/4" OAL, 20 at DC, 200/300 at AC kA Rating, 13/16" Diam
Item #: 61849667
Brand: Littelfuse
Model #: 0JTD004.TXID
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 4 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 57.20 |
| Overall Length (Inch) | 2-1/4 |
| Overall Diameter (mm) | 20.60 |
| Overall Diameter (Inch) | 13/16 |
| Material | Melamine |
| Indicating Information | Indicating |
| Interrupting Rating (kA) | 20 @ DC; 200/300 @ AC |
| Standards Met | CSA File LR29862 Certified; UL 248-8; UL Listed File E81895 |
