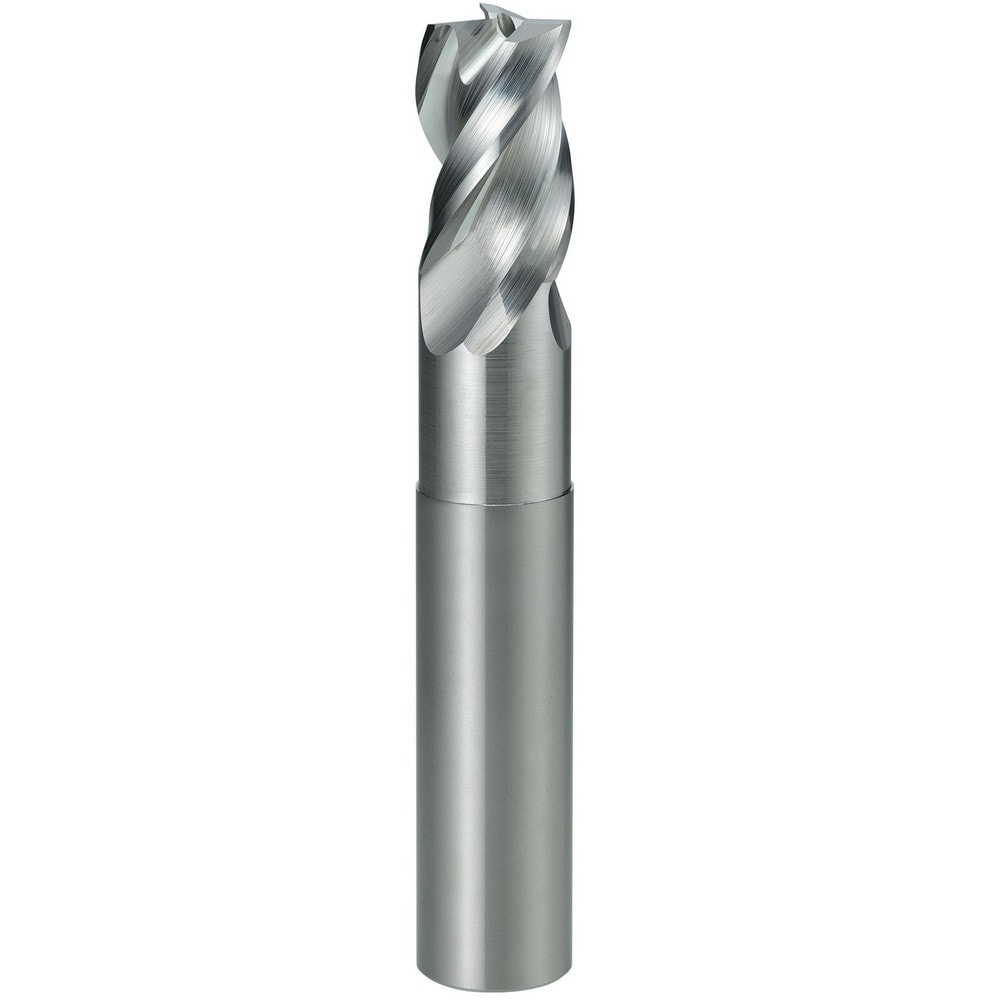

Square End Mill: 16.00 mm Dia, 24.00 mm LOC, 3 Flute, Solid Carbide
Item #: 09284084
Brand: Mitsubishi
Model #: 10632994
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.9449 |
| Length of Cut (mm) | 24.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 37.5 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Short |
| Neck Length (Decimal Inch) | 1.8898 |
| Neck Length (mm) | 48.00 |
| Neck Diameter (Decimal Inch) | 0.6063 |
| Neck Diameter (mm) | 15.40 |
| Mill Diameter Tolerance | 0; -0.030 |
| Shank Diameter Tolerance | h6 |
| Series | A3SA Endmill |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
