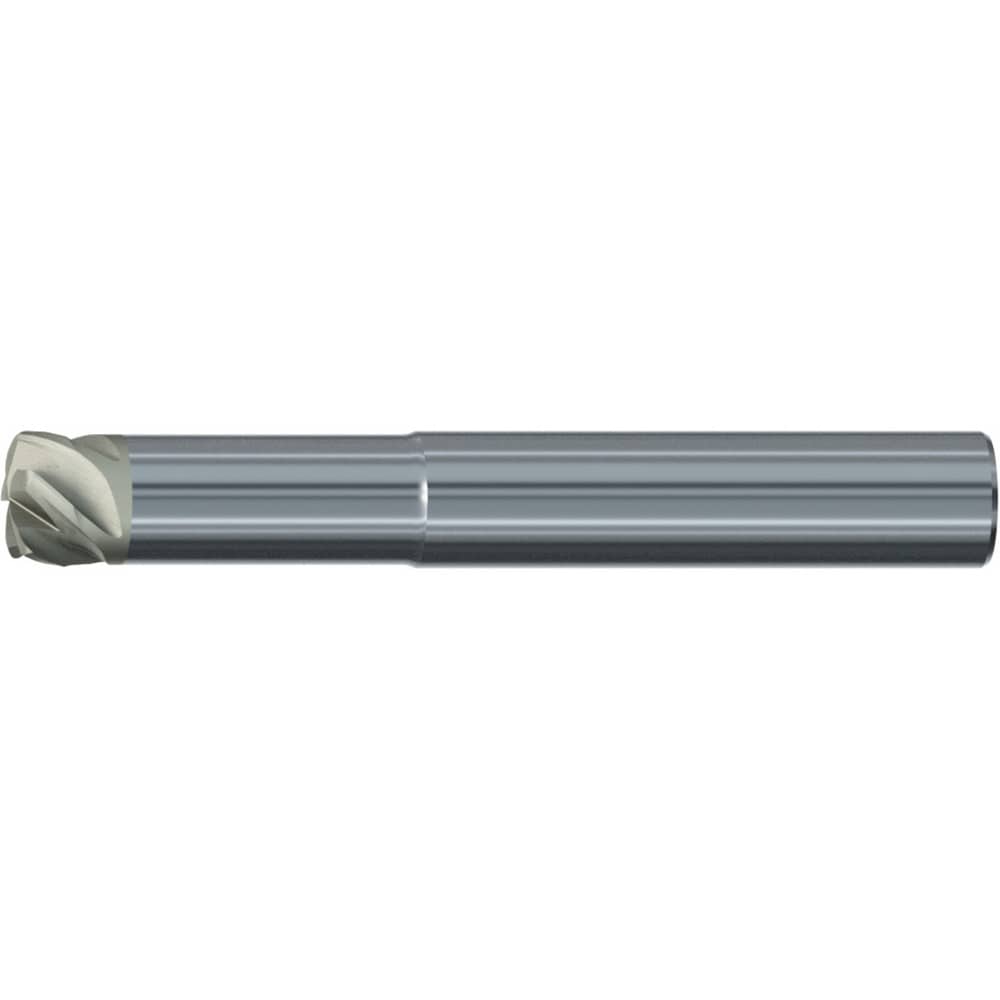

Corner Radius End Mill: 12.00 mm Dia, 4.0000 mm LOC, 40.00 deg Helix, Series 3818
Item #: 09083130
Brand: Emuge
Model #: 3818.012
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 4.0000 |
| Single Or Double End | Single |
| End Mill Material | Ceramic |
| Coating/Finish | Bright |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.20 |
| Overall Length (mm) | 83.0000 |
| Coolant Through | No |
| Chipbreaker | No |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 12.0000 |
| Neck Diameter (mm) | 11.500 |
| Shank Diameter Tolerance | h5 |
| UNSPSC Code | 27112803 |
| Series | 3818 |
